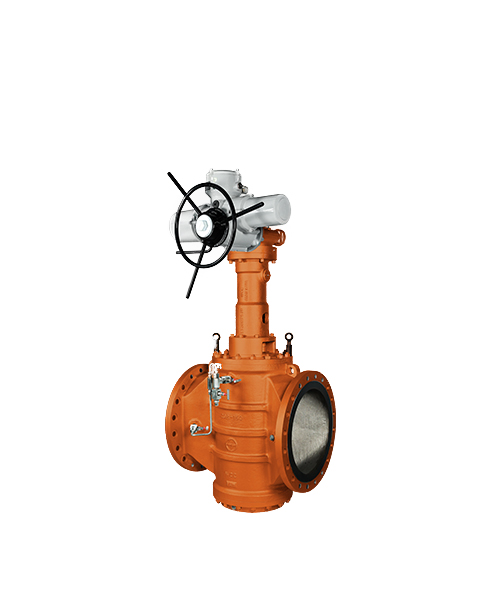

Double Block & Bleed Plug Valves

Size2" to 42" (50 mm to 1050 mm)
ASME ClassClass 150 to 600
Design StandardAPI 6D

Beyond Standards:

  • Design complies to API 6D

  • Valves offered with API 6D monogram

  • Fugitive emissions – Complies to ISO 15848-1

  • Fire safety - Complies to API 607/ ISO 10497

  • CE Marking - Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H

  • PED Module B1 Design examination certificate (certified by DNV) available

  • Atex - Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment

  • SIL3 - Safety Integrity Level SIL3 certification complies to IEC 61508

Features that Add Value:

  • L&T Valves Double Block & Bleed Plug Valve provides online-verifiable bubble tight sealing and is a safe and reliable replacement to the conventional two-valve system

  • High integrity positive shut-off obtained independent of line pressure, without sealants/ lubricants

  • Mechanical sealing ensuring online-verifiable positive double isolation for critical services

  • Patented operator mechanism enables segments to move towards the seats during valve operation – reduces wear and tear and enhances service life

  • Inbuilt cavity pressure relief system

  • Inline Maintainable Seats -Seats can be renewed without removing the valve from the pipeline (after draining and isolating the line)

Versatile Solutions:

  • Options: High Temperature, Cryogenic, FBE-lined, Steam-jacketed valves

  • ValvTrac™ RFID tags for reliable digital traceability
